Accurate air & gas flow measurement with mass flow technology

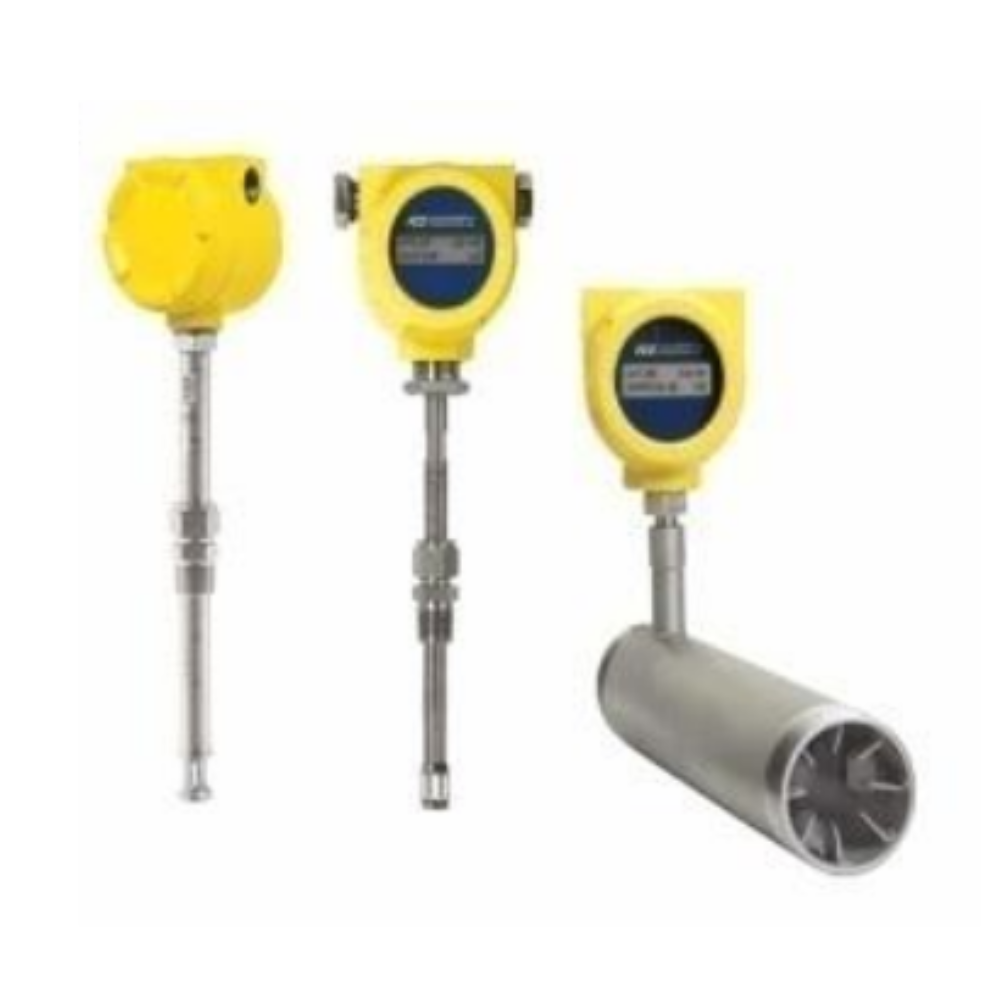

Thermal Mass Flow Meter is specially designed for measuring compressed air and multi-gas applications. It provides direct mass flow measurement with high accuracy and long-term stability.
| Application | Compressed Air, Multi Gas |
|---|---|
| Size | DN25 – DN300 mm |
| Flow Range | 0 – 250 Nm/s |
| Accuracy | ±1% |
| Power Supply | 24V DC / Battery Powered |
| Output | 4–20 mA / RS485 / Pulse |
| Operating Temperature | -30 to 70°C |
| Operating Pressure | 0 – 5 MPa |
| Process Connection | G ½” |
| Display | 2.8” LCD with Capacitive Touch Panel |
| Data Logger | 10,000,000 Samples |
| Protection | IP65 / IP67 / IP68 / Flame Proof |
| Make | MDS / Wise Air 4.0 |
