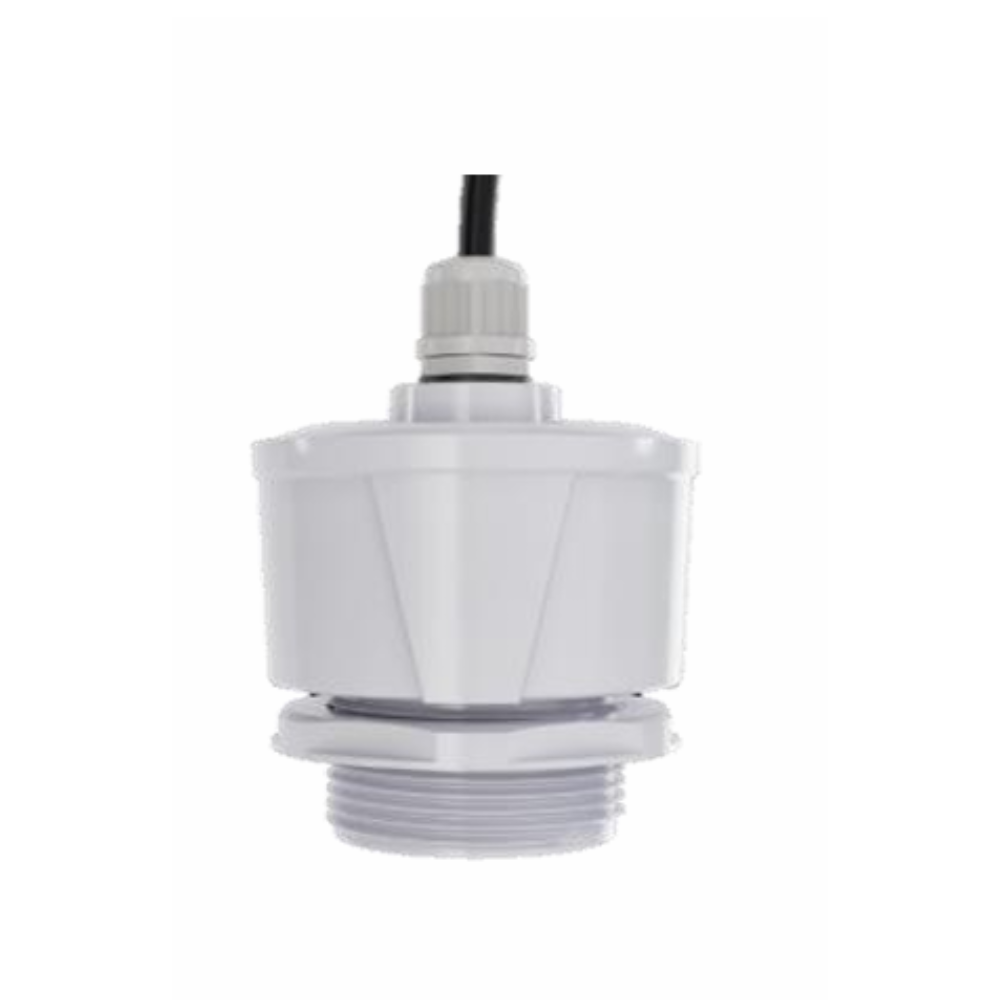

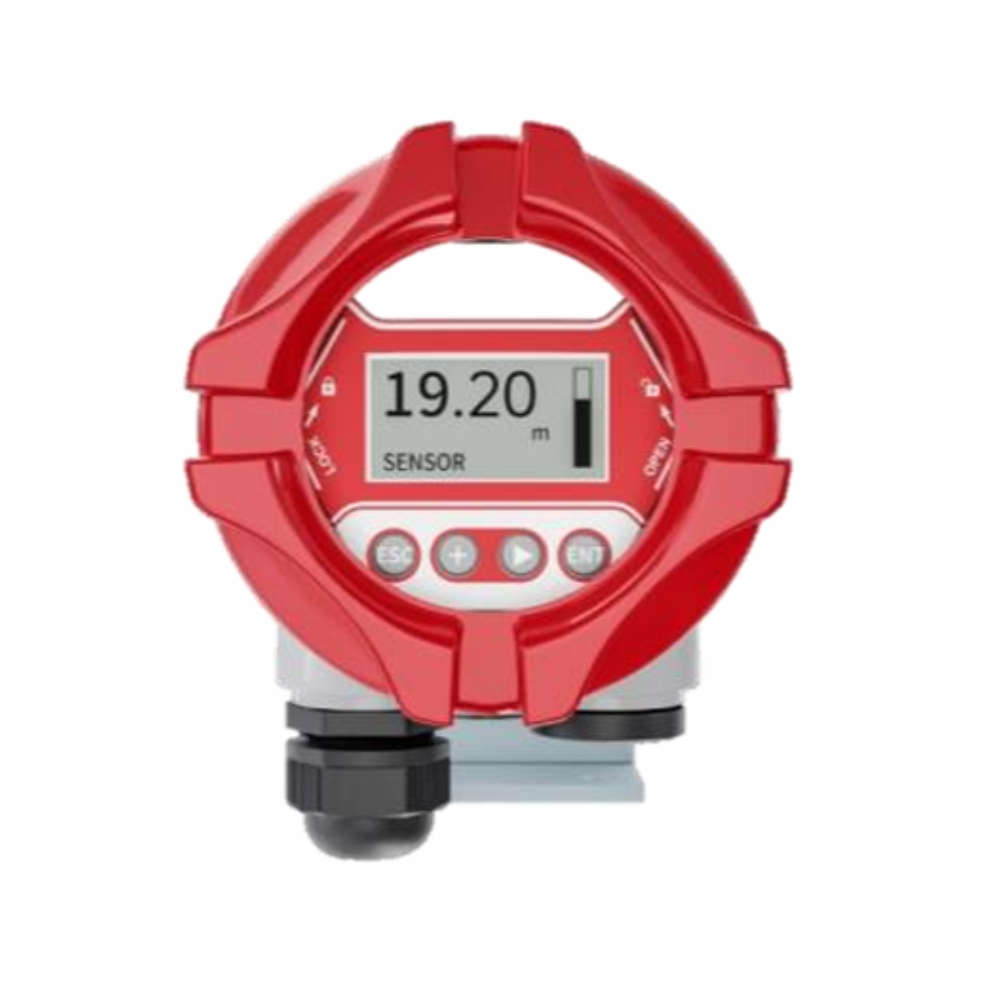

Radar Level Transmitter

High precision non-contact 80 GHz radar technology for accurate level measurement

Product Overview

  • Application: Water, West Water, Oil, Pharma, Chemical, Food & Beverages, Power
  • Models: VEGAPLUS 11 / 21 / 31 and VEGAPLUS C11 / C21 / C22 / C23
  • Two-wire 4…20 mA / HART
  • Measuring range up to 15 m (49.21 ft)
  • Accuracy ≤ 2 mm
  • Beam angle 8°
  • Operating voltage: 12…35 V DC
  • Non-contact 80 GHz radar technology
  • Protection rating IP66/IP68
  • Wireless Connectivity: Bluetooth
  • Make: MDS
Download Datasheet Get Quote

Technical Specifications

Process FittingThread G1½, 1½ NPT, R1½
Mounting ConnectionThread G1, 1 NPT, R1
Process Pressure-1 … +3 bar
Process Temperature-40 … +80°C
Ambient Temperature-40 … +80°C
Output Signal4 … 20 mA / HART
Technology80 GHz Non-contact Radar
ProtectionIP66 / IP68
MaterialPVDF wetted parts, FKM seal, PUR insulated cable
