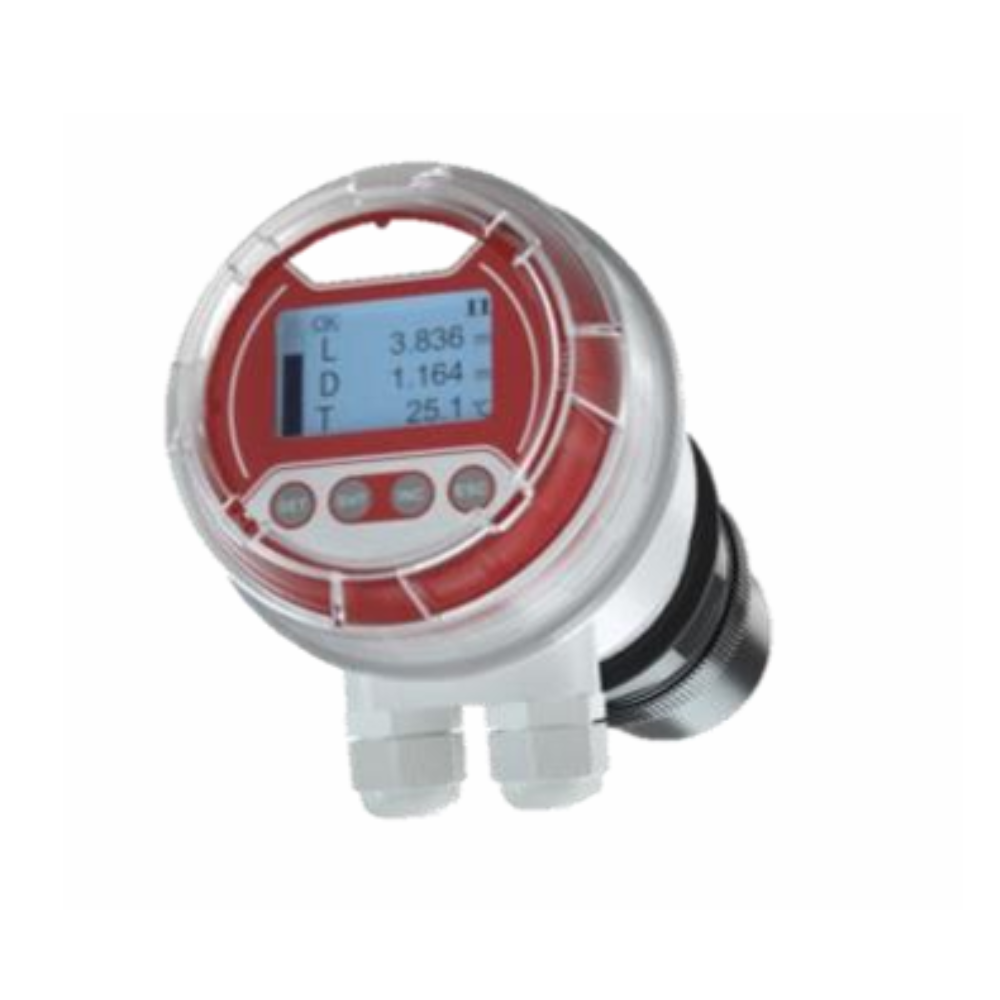

Ultrasonic Level Transmitter

Reliable non-contact level measurement for liquids & industrial applications

Product Overview

Ultrasonic Level Transmitters provide accurate and stable level measurement for liquids in tanks, sumps, and process vessels using non-contact ultrasonic technology.

  • Application: Water, Waste Water (ETP/WTP/STP), Oil, Pharma, Chemical, Food & Beverages
  • Measuring Range: 0–20 Mtrs
  • Accuracy & Resolution: 0.3% / 1mm
  • Output: 4–20 mA / RS485 / HART / Relay
  • Power Supply: 230 VAC / 24 V DC
  • Protection: IP65 / IP67 / IP68 / Flame Proof
Download Datasheet Get Quote

Technical Specifications

ApplicationWater, Waste Water (ETP/WTP/STP), Oil, Pharma, Chemical, Food & Beverages
Measuring Range0–20 Mtrs
Accuracy0.3% / 1mm
Output4–20 mA / RS485 / HART / Relay
Power Supply230 VAC / 24 V DC
Ambient Temperature20°C to 60°C
Pressure4 Bar
InstallationNut / Flange / Wall
ProtectionIP65 / IP67 / IP68 / Flame Proof
MakeMDS
